Sample Delta-V Budgets

From the Wikipedia article Delta-v Budget.
  • Launch from Terra's surface to LEO—this not only requires an increase of velocity from 0 to 7.8 km/s, but also typically 1.5–2 km/s for atmospheric drag and gravity drag
  • Re-entry from LEO—the delta-v required is the orbital maneuvering burn to lower perigee into the atmosphere, atmospheric drag takes care of the rest.

Stationkeeping

ManeuverAverage delta-v per year [m/s]Maximum per year [m/s]
Drag compensation in 400–500 km LEO< 25< 100
Drag compensation in 500–600 km LEO< 5< 25
Drag compensation in > 600 km LEO< 7.5
Station-keeping in geostationary orbit50–55
Station-keeping in L1/L230–100
Station-keeping in lunar orbit0–400
Attitude control (3-axis)2–6
Spin-up or despin5–10
Stage booster separation5–10
Momentum-wheel unloading2–6

Terra–Luna space

Delta-v needed to move inside Terra–Luna system (speeds lower than escape velocity) are given in km/s. This table assumes that the Oberth effect is being used—this is possible with high thrust chemical propulsion but not with current (as of 2011) electrical propulsion.

The return to LEO figures assume that a heat shield and aerobraking/aerocapture is used to reduce the speed by up to 3.2 km/s. The heat shield increases the mass, possibly by 15%. Where a heat shield is not used the higher from LEO Delta-v figure applies, the extra propellant is likely to be heavier than a heat shield. LEO-Ken refers to a low earth orbit with an inclination to the equator of 28 degrees, corresponding to a launch from Kennedy Space Center. LEO-Eq is an equatorial orbit.

(ed note: EML-1 is considered to be the best place for an orbital propellant depot. )

ΔV km/s from/toLEO-KenLEO-EqGEOEML-1EML-2EML-4/5LLOLunaC3=0
Terra9.3–10
Low Earth orbit (LEO-Ken)4.244.333.773.433.974.045.933.22
Low Earth orbit (LEO-Eq)4.243.903.773.433.994.045.933.22
Geostationary orbit (GEO)2.061.631.381.471.712.053.921.30
Lagrangian point 1 (EML-1)
(Orbital Propellant Depot)
0.770.771.380.140.330.642.520.14
Lagrangian point 2 (EML-2)0.330.331.470.140.340.642.520.14
Lagrangian point 4/5 (EML-4/5)0.840.981.710.330.340.982.580.43
Low lunar orbit (LLO)1.311.312.050.640.650.981.871.40
Luna2.742.743.922.522.532.581.872.80
Terra escape velocity (C3=0)0.000.001.300.140.140.431.402.80

Terra–Luna space—low thrust

Current electric ion thrusters produce a very low thrust (milli-newtons, yielding a small fraction of a g), so the Oberth effect cannot normally be used. This results in the journey requiring a higher delta-v and frequently a large increase in time compared to a high thrust chemical rocket. Nonetheless, the high specific impulse of electrical thrusters may significantly reduce the cost of the flight. For missions in the Terra–Luna system, an increase in journey time from days to months could be unacceptable for human space flight, but differences in flight time for interplanetary flights are less significant and could be favorable.

The table below presents delta-v's in km/s, normally accurate to 2 significant figures and will be the same in both directions, unless aerobreaking is used as described in the high thrust section above.

FromTodelta-v (km/s)
Low Earth orbit (LEO)Earth–Moon Lagrangian 1 (EML-1)7.0
Low Earth orbit (LEO)Geostationary Earth orbit (GEO)6.0
Low Earth orbit (LEO)Low Lunar orbit (LLO)8.0
Low Earth orbit (LEO)Sun–Earth Lagrangian 1 (SEL-1)7.4
Low Earth orbit (LEO)Sun–Earth Lagrangian 2 (SEL-2)7.4
Earth–Moon Lagrangian 1 (EML-1)Low Lunar orbit (LLO)0.60–0.80
Earth–Moon Lagrangian 1 (EML-1)Geostationary Earth orbit (GEO)1.4–1.75
Earth–Moon Lagrangian 1 (EML-1)Sun-Earth Lagrangian 2 (SEL-2)0.30–0.40

Interplanetary

The spacecraft is assumed to be using chemical propulsion and the Oberth effect.

FromToDelta-v (km/s)
LEOMars transfer orbit4.3
Terra escape velocity (C3=0)Mars transfer orbit0.6
Mars transfer orbitMars capture orbit0.9
Mars capture orbitDeimos transfer orbit0.2
Deimos transfer orbitDeimos surface0.7
Deimos transfer orbitPhobos transfer orbit0.3
Phobos transfer orbitPhobos surface0.5
Mars capture orbitLow Mars orbit1.4
Low Mars orbitPhobos1.4
Low Mars orbitDeimos1.9
Low Mars orbitMars surface4.1
EML-1Mars transfer orbit0.74
EML-2Mars transfer orbit<1.0
Mars transfer orbitLow Mars Orbit2.7
Terra escape velocity (C3=0)Closest NEO0.8–2.0

(ed note: From EML1, Mars transfer costs 0.74km/s. Mars capture costs 0.9km/s and the move to low Mars orbit costs 1.4km/s. Trip total is just over 3km/s.

Put an orbital propellant depot in Low Mars Orbit, and supply it with ice from Phobos and/or Deimos)

According to Marsden and Ross, "The energy levels of the Sun–Earth L1 and L2 points differ from those of the Earth–Moon system by only 50 m/s (as measured by maneuver velocity)."

Near-Earth objects

Near-Earth objects are asteroids that are within the orbit of Mars. The delta-v to return from them are usually quite small, sometimes as low as 60 m/s, using aerobraking in Earth's atmosphere. However, heat shields are required for this, which add mass and constrain spacecraft geometry. The orbital phasing can be problematic; once rendezvous has been achieved, low delta-v return windows can be fairly far apart (more than a year, often many years), depending on the body.

However, the delta-v to reach near-Earth objects is usually over 3.8 km/s, which is still less than the delta-v to reach the Moon's surface. In general bodies that are much further away or closer to the Sun than Earth have more frequent windows for travel, but usually require larger delta-vs.

ADVENTURES IN ORBITAL SPACE

My text for this sermon is the set of delta v maps, especially the second of them, at the still ever-growing Atomic Rockets site. These maps show the combined speed changes, delta v in the biz, that you need to carry out common missions in Earth and Mars orbital space, such as going from low Earth orbit to lunar orbit and back.

Here is a table showing some of the missions from the delta v maps, plus a few others that I have guesstimated myself:

Patrol Missions
MissionDelta V
Low earth orbit (LEO) to geosynch and return5700 m/s powered
(plus 2500 m/s aerobraking)
LEO to lunar surface (one way)5500 m/s
(all powered)
LEO to lunar L4/L5 and return
(estimated)
4800 m/s powered
(plus 3200 m/s aerobraking)
LEO to low lunar orbit and return4600 m/s powered
(plus 3200 m/s aerobraking)
Geosynch to low lunar orbit and return
(estimated)
4200 m/s
(all powered)
Lunar orbit to lunar surface and return3200 m/s
(all powered)
LEO inclination change by 40 deg
(estimated)
5400 m/s
(all powered)
LEO to circle the Moon and return retrograde
(estimated)
3200 m/s powered
(plus 3200 m/s aerobraking)
Mars surface to Deimos (one way)6000 m/s
(all powered)
LEO to low Mars orbit (LMO) and return6100 m/s powered
(plus 5500 m/s aerobraking)

Entries marked "(estimated)" are not in source table; delta v estimates are mine. ("Plus x m/s aerobraking" means ordinarily the engine would be responsible for that delta V as well, but it can be obtained for free via aerobraking. E.g., LEO to geosynch and return costs 8,200 m/s with no aerobraking)

Two things stand out in this list. One is how helpful aerobraking can be if you are inbound toward Earth, or any world with a substantial atmosphere. Many craft in orbital space will be true aerospace vehicles, built to burn off excess speed by streaking through the upper atmosphere at Mach 25 up to Mach 35.

But what really stands out is how easily within the reach of chemical fuels these missions are. Chemfuel has a poor reputation among space geeks because it barely manages the most important mission of all, from Earth to low orbit. Once in orbit, however, chemfuel has acceptable fuel economy for speeds of a few kilometers per second, and rocket engines put out enormous thrust for their weight.

(ed note: with 4,400 m/s exhaust velocity oxygen-hydrogen chemical rockets:

3100 m/s ΔV requires a very reasonable mass ratio of 2 {50% of wet mass is fuel}

6100 m/s ΔV requires a mass ratio of 4 {75% fuel} which is right at the upper limit of economical mass ratios )

In fact, transport class rocket ships working routes in orbital space can have mass proportions not far different from transport aircraft flying the longest nonstop global routes.

A jetliner taking off on a maximum-range flight may carry 40 percent of its total weight in fuel, with 45 percent for the plane itself and 15 percent in payload. A moonship, the one that gets you to lunar orbit, might be 60 percent propellant on departure from low Earth orbit, with 25 percent for the spacecraft and the same 15 percent payload. The lander that takes you to the lunar surface and back gets away with 55 percent propellant, 25 percent for the spacecraft, and 20 percent payload.

(These figures are for hydrogen and oxygen as propellants, currently somewhat out of favor because liquid hydrogen is bulky, hard to work with, and boils away so readily. But H2-O2 is the best performer, and may be available on the Moon if lunar ice appears in concentrations that can be shoveled into a hopper. Increase propellant load by about half for kerosene and oxygen, or 'storable' propellants.)

(ed note: so the point is that chemical rockets are perfectly adequate for missions to Mars or cis-Lunar space provided there is a network of orbital propellant depots suppled by in-situ resource allocation. An orbital propellant depot in LEO supplied by Lunar ice would do the trick. An orbital depot in Low Mars Orbit supplied by Deimos ice would also be very useful.)

From ADVENTURES IN ORBITAL SPACE by Rick Robinson (2015)

Spaceship Handbook Mission Table

This is a table of mission parameters calculated by Jon C. Rogers for the book Spaceship Handbook. It lists round-trip missions starting at Terra's surface, traveling to and landing on the destination planet (or at low orbit for Venus, Jupiter, Saturn, Uranus, and Neptune; due to the fact that the atmospheric pressure of these planets will crush your spacecraft like a cheap beer can) then lifting off, traveling back to and landing on Terra.

I repeat, this is for round trips, not one-way trips. For instance, the entries for Luna are the trip Terra to Luna then Luna to Terra. Or Luna to Terra then Terra to Luna.

Mr. Rogers is interested in comparing the different trajectory types, so the focus is on splitting the mission into standard blocks, rather than optimizing for minimum delta V. An optimized missiom will require less delta V than what is listed in the table (approximately 5% to 10% less delta V). As a verification, Mr. Rogers used his mathematical model to calculate a mission to Luna and compared it to the actual data reported by NASA for the Apollo 11 mission. His model said delta V of 16.905 km/s which is within 3% of the NASA Apollo 11 delta V of 16.479 km/s.

Six trajectories are listed, three impulse types and three constant acceleration brachistochrone types. "Impulse" means the spacecraft makes an initial burn then coasts for months.

Impulse trajectory I-1 is pretty close to a Hohmann (minimum delta V / maximum time) orbit, but with a slightly higher delta V.

Impulse trajectory I-2 is in-between I-1 and I-3 (it is equivalent to an elliptical orbit from Mercury to Pluto, the biggest elliptical orbit that will fit inside the solar system).

Impulse trajectory I-3 is near the transition between delta V levels for high impulse trajectories and low brachistochrone trajectories (it is a hyperbolic solar escape orbit plus 30 km/s).

Brachistochrone (maximum delta V / minimum time) trajectories are labeled by their level of constant acceleration: 0.01 g, 0.10 g, and 1.0 g.

The transit times are important for figuring things like how much food and life support endurance must be carried, mission radiation total dosage, and damage to astronauts due to prolonged microgravity exposure. In fact, if you have a hard limit on, say, total radiation dosage, you can examine the table and rule out any mission trajectory whose transit time exceeds it.

Delta-v and Travel Time for ROUND Trips To or From Terra's Surface
(i.e., the "Mars" row gives data for both the TERRA-MARS-TERRA and the MARS-TERRA-MARS missions)
DestinationImpulseBrachistochrone
I-1I-2I-30.01g0.10g1.00g
☿ Mercury48,740 (8m)75,210 (2.5m)106,230 (2m)397,000 (33d)1,205,000 (13d)3,794,000 (4d)
Venus30,270 (9.6m)63,330 (1m)98,620 (21d)281,000 (19d)815,000 (8d)2,552,000 (3d)
⊕ Terra------
☾ Luna16,480 (9d)----260,000 (7h)
Mars29,930 (17m)52,930 (2m)94,110 (1.5m)370,000 (30d)1,115,000 (12d)3,508,000 (4d)
⚶ Vesta30,300 (2y2m)46,670 (5.5m)92,560 (3.8m)578,000 (54d)1,791,000 (20d)5,654,000 (7d)
⚳ Ceres33,430 (2y7m)44,730 (7.5m)92,160 (5m)655,000 (63d)2,040,000 (23d)6,441,000 (8d)
⚴ Pallas33,110 (2y7m)44,320 (7.5m)91,770 (5m)656,000 (63d)2,043,000 (23d)6,450,000 (8d)
♃ Jupiter69,990 (5y5m)72,690 (1y10m)118,010 (1y)1,000,000 (3.5m)3,142,000 (36d)9,930,000 (12d)
Io76,220 (5y6m)70,760 (1y10m)78,980 (1y)1,000,000 (3.5m)3,143,000 (36d)9,933,000 (12d)
Europa67,390 (5y6m)61,850 (1y10m)71,490 (1y)1,001,000 (3.5m)3,144,000 (36d)9,935,000 (12d)
Ganymede61,880 (5y5m)56,250 (1y10m)67,130 (1y)1,001,000 (3.5m)3,145,000 (36d)9,938,000 (12d)
Callisto55,400 (5y5m)49,640 (1y10m)62,190 (1y)1,002,000 (3.5m)3,147,000 (36d)9,945,000 (12d)
♄ Saturn57,690 (12y1m)55,770 (4y11m)108,680 (2y3m)1,420,000 (5m)4,477,000 (52d)14,153,000 (17d)
Enceladus65,850 (12y1m)59,880 (4y11m)67,810 (2y3m)1,421,000 (5m)4,477,000 (52d)14,155,000 (17d)
Tetheys62,910 (12y1m)56,860 (4y11m)65,600 (2y3m)1,420,000 (5m)4,478,000 (52d)14,155,000 (17d)
Dione59,810 (12y1m)53,660 (4y11m)63,270 (2y3m)1,420,000 (5m)4,478,000 (52d)14,155,000 (17d)
Rhea56,310 (12y1m)50,010 (4y11m)60,780 (2y3m)1,421,000 (5m)4,478,000 (52d)14,156,000 (17d)
Titan49,670 (12y1m)42,750 (4y11m)56,660 (2y3m)1,421,000 (5m)4,479,000 (52d)14,160,000 (17d)
Iapetus45,010 (12y1m)37,590 (4y11m)53,070 (2y3m)1,422,000 (5m)4,483,000 (52d)14,173,000 (17d)
♅ Uranus50,110 (32y)44,830 (15y6m)56,420 (5y2m)2,069,00 (8m)6,532,00 (76d)20,652,000 (24d)
Ariel49,910 (32y)44,650 (15y6m)56,150 (5y2m)2,069,000 (8m)6,532,00 (76d)20,653,000 (24d)
Umbriel48,010 (32y)42,550 (15y6m)54,870 (5y2m)2,069,000 (8m)6,532,000 (76d)20,653,000 (24d)
Titania46,180 (32y)40,410 (15y6m)53,800 (5y2m)2,069,000 (8m)6,532,000 (76d)20,654,000 (24d)
Oberon45,040 (32y)38,930 (15y6m)53,220 (5y2m)2,069,000 (8m)6,532,000 (76d)20,654,000 (24d)
♆ Neptune51,370 (61y3m)48,420 (36y)57,470 (8y5m)2,613,000 (10m)8,257,000 (96d)26,108,000 (31d)
Triton48,090 (61y3m)44,780 (36y)56,030 (8y5m)2,614,000 (10m)8,257,000 (96d)26,109,000 (31d)
Nereid40,620 (61y3m)36,300 (36y)50,400 (8y5m)2,615,000 (10m)7,262,000 (96d)26,125,000 (31d)
♇ Pluto39,810 (90y11m)39,810 (88y9m)50,140 (11y4m)3,009,000 (11m)9,508,000 (111d)30,063,000 (35d)
Charon39,680 (90y11m)39,680 (88y9m)50,080 (11y4m)3,009,000 (11m)9,508,000 (111d)30,063,000 (35d)
Values are delta V in m/s, with transit times in parenthesis. Y = years, M = months, D = days, H = hours.
Planets in gold have atmospheric pressure that will crush your ship like an eggshell, do not land there. The delta V cost for gold planets does not include landing and take-off delta V, only delta V to low orbit.

In (the) table, I was presenting a complete round trip from the surface of the earth to any Destination and back to Earth's surface— which included the steps of the voyage as outlined in the figure 39, i.e., roughly:

  1. Launch to LEO
  2. Transfer to edge of Earths gravity well
  3. Transfer between planets
  4. Mid course corrections
  5. Capture Destination Planet
  6. Transfer to Low orbit around destination planet
  7. Circularize Low Orbit
  8. Land on Destination planet (with allowance for atmosphere braking)
  9. thru 16 And then Repeat the process in reverse to come back to Earth.

Now, one thing I'll admit to is that my numbers are NOT the most efficient possible for any particular trip. What I wanted to do was break up a round trip to anywhere into separate definable components so the Delta-Vs of those differing trajectories could be compared apples to apples. Any normal orbit analyst would have combined steps 2 and 3 (and 10 & 11) for an improved mission Delta-V. However, when you do that, you make comparing a Hohmann orbit to a "Big Ellipse Orbit" or a Hyperbolic + 30 Kms Orbit impossible—that is, they become Apples and oranges. (Don't forget...Space isn't Flat!)

By breaking the trip up into stages we can break out and compare the TRANSFER VELOCITY of the differing Orbits and compare them...and still be very close to the actual Delta V of a typical mission.

So, by this method I produced a valid statistical comparison of different orbits velocity requirements and round trip duration requirements. Real mission planners will beat my numbers by approximately 5-10% perhaps, but that only means you would have that much 'gas' left in the tanks following my flight plans.

Bottom line, dont forget to carry fuel for those mid course maneuvers (errors and asteroids— Darn Rocks!!) and also to land or you'll find yourself in space with no fuel!

And now you know why I say: "May your jackstands strike earth before your tanks run dry!

Jon C. Rogers

Using the mission table above, Mr. Rogers took a list of major propulsion systems and calculated which ones were up to the task of peforming said missions. Note that Mr. Rogers values for the exhaust v3elocity of the propulsion systems might differ slightly from the ones I have on the mission list.

  • 1 Stage, Max Payload is 33% payload, 66% propellant, mass ratio of 2.94
  • 1 Stage, Min Payload is 11% payload, 89% propellant, mass ratio of 9.1
  • Multi Stage is 1.6% payload, 98.4% propellant, mass ratio of 62.5

Cross reference the mass ratio, propulsion system, and mission trajectory. If there is a colored box at the intersection, the propulsion system can perform that mission.

Example: For a 1 Stage minimum payload (mass ratio of 9.1), using a Nuclear Fission Gas Core reactor, with a Mars Impulse trajectory I-2, the presence of a hot pink box says that propulsion system is capable of that mission. But it is not capable of performing a Mars Constant Brachistochrone 0.01g mission.

Erik Max Francis' Mission Tables

Below are a series of tables for Hohmann transfer delta V requirments. Unlike the above table, they are for one-way trips to various destinations. For instance, the above table will give requirements for a Terra-Mars-Terra mission, but the tables below will give requirements for a Terra-Mars mission.

The tables assume that an orbit for each of the bodies is 100 km altitude (even for pointlessly tiny ones like Phobos and Deimos), and for surface launches it is presumed that all the bodies have no atmosphere (not true for, say, Titan).

The tables were created by Erik Max Francis' amazing Hohmann orbit calculator (BOTEC) and the easy to use Python programming language (sample program here and here). Note it only works with Python version 2.3 to 2.9999. There are some simplifications which reduce the accuracy a bit, read the docs under "Limitations" for details.


Pete Wildsmith's wrote an online wrapper for the BOTEC. It does not print out tables, but you can input two planets or moons and it will give you the numbers for a Hohmann transfer.

https://hohmann.herokuapp.com/

The source code for Mr. Wildsmith's wrapper can be found here.


Be told: these calculations are not NASA-grade because they use certain simplifying assumptions. They are good enough for a science fiction author but not for an actual spaceflight. The assumptions are:

  • All bodies are spherical, and rotate with constant angular velocity.

  • All orbits are circular, with another body or a gravitating point at the center (except for toplevel objects like the Sun); thus all bodies orbit with constant angular velocity.

  • All orbits are coplanar.

  • All orbits are prograde. This affects only a few major worlds (e.g., Triton) and numerous, tiny, outer Solar System distant satellites. The rotation of objects could possibly be retrograde, since that is only indicated by means of a negative period.

  • All bodies have negligible size compared to their orbits, and all suborbits have negligible size compared to their parent orbits.

  • Only objects with actual proper names are included in BOTEC's database. Even objects such as asteroids and satellites with provisional names are not included here. No comets, whether given proper names, or not, however, are included. This would not be hard to change.

  • For all orbital transfers, it is assumed that the durations of application of deltavee are much shorter than the duration of the flight time. That is, burns are treated as instantaneous (that is, orbital transfers are "impulsive"). This is a good approximation in most cases (even with chemical rockets), but not with more exotic drive systems like ion drives or solar/magnetic sails.

Delta V Required for Travel Using Hohmann Orbits

LEGEND

  • Start and destination planets are labeled along axes, it does not matter which axis you use for start or destination.
  • In both sections, "y" means "years", "m" means "months", "d" means "days", and "h" means "hours"
  • Values below the diagonal in blue: First value is delta V (meters per second) needed for a Hohmann transfer from orbit around one world to orbit around the other, landing on neither. Second value is the transit time for the transfer.
  • Values above the diagonal in red: First value is delta V (meters per second) needed for a Hohmann transfer between the worlds, including take-off and landing (If either is a gas giant, a 100 kilometer orbit is used instead of the planet's surface). Second value is the Synodic period (i.e., frequency of Hohmann launch windows).
  • Diagonal values in gold are delta V's needed to take off from the surface of a world and go into circular orbit around it, or to land from a circular orbit.

Example: Hohmann transfer from Mars to Jupiter (or from Jupiter to Mars)

Find the "Mars" row and move along it until you reach the "Jupiter" column. The cell is above the diagonal, printed in red letters. The first number says that if you lift-off from Mars, travel to Jupiter in a Hohmann trajectory, and land (meaning enter a 100 km circular orbit), the spacecraft will expend 25,265 meters per second of delta-V (same delta-V if you start at Jupiter and travel to Mars). The second number says the launch window for the Mars-Jupiter Hohmann opens every two years and 2.8 months (same for Jupiter-Mars Hohmann).

Now, find the "Jupiter" row and move along it until you reach the "Mars" column. The cell is below the diagonal, printed in blue letters. The first number says if you start in a low Mars orbit and travel to a low Jupiter orbit in a Hohmann trajectory, the spacecraft will expend 21,956 m/s of delta-V (same delta-V if you start at Jupiter and travel to Mars). The second number says the Hohmann transfer will take 3 years and 1 month to reach its destination.

As a side note, this style of table apparently originated with Jerry Pournelle in his science essay Those Pesky Belters and Their Torchships. By which I mean values below the diagonal are orbit-to-orbit, values above the diagonal are surface-to-surface, and the diagonal is takoff or landing.

Solar System

Be aware of the simplifying assumptions. Meaning that the values here are close approximations but not exact. If you want exact you will need NASA-grade trajectory software.

MercuryVenusEarthMarsVestaJunoEugeniaCeresPallasJupiterSaturnUranusNeptunePluto
Mercury2,94519,852
4.7m
23,523
3.8m
23,143
3.3m
24,486
3.1m
24,991
3.1m
25,050
3.1m
25,059
3.0m
25,094
3.0m
36,121
2.9m
30,200
2.9m
26,548
2.9m
27,176
2.9m
24,200
2.9m
Venus9,524
2.5m
7,26521,703
1y, 7.2m
18,542
11.0m
19,316
8.9m
19,960
8.6m
20,043
8.6m
20,078
8.5m
20,114
8.5m
33,372
7.8m
27,477
7.5m
23,913
7.4m
24,620
7.4m
21,483
7.4m
Earth13,094
3.5m
6,887
4.8m
7,84716,540
2y, 1.6m
16,368
1y, 4.6m
17,035
1y, 3.6m
17,124
1y, 3.4m
17,170
1y, 3.3m
17,204
1y, 3.3m
31,642
1y, 1.1m
25,705
1y, 0.4m
22,169
1y, 0.1m
22,918
1y, 0.1m
19,674
1y
Mars16,876
5.6m
7,887
7.1m
5,748
8.5m
3,5027,525
3y, 10.8m
8,323
3y, 3.7m
8,437
3y, 2.8m
8,524
3y, 2.2m
8,555
3y, 2.1m
25,265
2y, 2.8m
19,694
2y, 0.1m
16,475
1y, 11.1m
17,390
1y, 10.8m
14,023
1y, 10.7m
Vesta21,371
9.7m
11,832
11.5m
8,756
1y, 1.1m
4,041
1y, 4.2m
2341,167
21y, 8.9m
1,312
18y, 11.9m
1,544
17y, 2.6m
1,544
17y, 0.2m
20,966
5y, 2.7m
15,834
4y, 1.6m
12,960
3y, 9.5m
14,059
3y, 8.5m
10,527
37, 8.2m
Juno21,978
11.3m
12,580
1y, 1.2m
9,528
1y, 2.9m
4,950
1y, 6.2m
933
1y, 11.9m
77233
149y, 11.9m
625
82y, 8.0m
578
78y, 3.9m
20,367
6y, 10.6m
15,253
5y, 1.3m
12,423
4y, 7.1m
13,558
4y, 5.7m
9,969
4y, 5.2m
Eugenia22,075
11.6m
12,700
1y, 1.6m
9,654
1y, 3.2m
5,102
1y, 6.5m
1,124
2y, 0.3m
127
2y, 2.5m
44496
184y, 2.2m
443
163y, 10.9m
20,264
7y, 2.6m
15,152
5y, 3.5m
12,328
4y, 8.9m
13,469
4y, 7.4m
9,869
4y, 6.8m
Ceres21,863
11.9m
12,514
1y, 1.8m
9,477
1y, 3.5m
4,963
1y, 6.8m
1,116
2y, 0.6m
279
2y, 2.9m
191
2y, 3.3m
320755
1488y, 10.0m
20,172
7y, 6.1m
15,041
5y, 5.3m
12,216
4y, 10.4m
13,360
4y, 8.8m
9,751
4y, 8.2m
Pallas21,943
11.9m
12,596
1y, 1.9m
9,558
1y, 3.5m
5,041
1y, 6.9m
1,160
2y, 0.7m
269
2y, 2.9m
172
2y, 3.3m
233
2y, 3.6m
24220,175
7y, 6.6m
15,051
5y, 5.6m
12,229
4y, 10.6m
13,374
4y, 9.0m
9,765
4y, 8.4m
Jupiter33,159
2y, 4.0m
26,048
2y, 6.6m
24,192
2y, 8.8m
21,956
3y, 1.0m
20,813
3y, 8.2m
20,318
3y, 10.9m
20,252
3y, 11.3m
19,933
3y, 11.7m
19,982
3y, 11.8m
42,53028,237
19y, 9.6m
24,085
13y, 9.9m
24,765
12y, 9.5m
20,492
12y, 5.6m
Saturn27,239
5y, 6.8m
20,156
5y, 10.2
18,259
6y, 1.0m
16,392
6y, 6.5m
15,682
7y, 3.6m
15,205
7y, 7.0m
15,140
7y, 7.5m
14,806
7y, 8.0m
14,862
7y, 8.1m
28,237
10y, 0.6m
25,49516,875
45y, 9.8m
17,573
36y, 2.1m
12,787
33y, 8.4m
Uranus23,588
15y, 3.9m
16,594
15y, 8.7m
14,726
16y, 0.6m
13,177
16y, 8.1m
12,809
17y, 8.4m
12,374
18y, 0.9m
12,316
18y, 1.7m
11,982
18y, 2.4m
12,041
18y, 2.5m
24,085
21y, 3.8m
16,875
27y, 3.6m
15,08213,153
171y, 12.0m
7,763
127y, 4.9m
Neptune24,217
29y, 8.2m
17,302
30y, 2.1m
15,476
30y, 7.0m
14,093
31y, 4.3m
13,908
32y, 7.4m
13,510
33y, 0.9m
13,457
33y, 1.9m
13,126
33y, 2.7m
13,186
33y, 2.8m
24,765
36y, 12.0m
17,573
44y, 1.2m
13,153
61y, 1.1m
16,6238,116
491y, 5.0m
Pluto20,424
44y, 5.3m
13,349
45y
11,415
45y, 5.6m
9,909
46y, 4.3m
9,558
47y, 9.4m
9,101
48y, 3.7m
9,038
48y, 4.9m
8,697
48y, 5.8m
8,758
48y, 5.9m
19,670
52y, 8.9m
11,959
60y, 8.2m
6,924
79y, 4.7m
7,268
102y, 4.9m
802

Be aware of the simplifying assumptions. Meaning that the values here are close approximations but not exact. If you want exact you will need NASA-grade trajectory software.

Legend

  • Mission: origin planet - destination planet
  • Orbit ΔV: Orbit-to-Orbit. Delta-V cost a spacecraft has to pay for Hohmann starting in low orbit at origin and ending in low orbit at destination
  • Orbit T: Orbit-to-Orbit. Transit time for a spacecraft in a Hohmann starting and ending in low orbit around the two planets. Y=years, M=months
  • SYN: Synodic period, (long) delay between one Hohmann launch window and the next
  • ANG: Orbital phase angle between origin and destination planets at Hohmann launch window (see diagram above)
  • Insert ΔV: Delta-V cost for trans-Destination insertion burn at start of Hohmann trajectory
  • Arrive ΔV: Delta-V cost for Destination orbital insertion (arrival) burn at end of Hohmann trajectory
  • Surf ΔV: Surface-to-Surface. Delta-V total cost for lift-off from origin, Hohmann trajectory, then landing at destination
  • Rnd Orbit ΔV: Delta-V total cost for Orbital Round Trip. Start at low orbit at origin, Hohmann to low orbit at destination, then Hohmann to low orbit at origin
  • Rnd Surf ΔV: Delta-V total cost for Surface Round Trip. Lift-off from origin, Hohmann trajectory, land at destination, lift-off from destination, Hohmann trajectory, land at origin
  • Wait T: Wait Time. For round trip, after spacecraft arrives at destination, amount of time ship must wait at destination until homeward Hohmann window opens
  • Rnd T: Round Trip Time. Total time for round trip, including wait time at destination
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Mercury-Venus9.52.5m4.7m59.0°5.04.519.919.039.70.6m5.5m
Mercury-Terra13.13.5m3.8m76.0°7.55.623.526.247.02.3m9.3m
Mercury-Mars16.95.6m3.3m90.6°10.36.623.133.846.30.4m11.6m
Mercury-Vesta21.49.7m3.1m100.1°12.58.924.542.749.06.1m2y,
1.4m
Mercury-Juno22.011.3m3.1m102.0°13.09.025.044.050.06.5m2y,
5.1m
Mercury-Eugenia22.111.6m3.1m102.3°13.19.025.144.250.17.1m2y,
6.4m
Mercury-Ceres21.911.9m3.0m102.5°13.18.725.143.750.17.6m2y,
7.4m
Mercury-Pallas21.911.9m3.0m102.6°13.18.825.143.950.27.7m2y,
7.5m
Mercury-Jupiter33.22y,
4.0m
2.9m109.1°15.018.236.166.372.21y,
10.8m
6y,
6.8m
Mercury-Saturn27.25y,
6.8m
2.9m112.5°16.011.230.254.560.45y,
2.7m
16y,
4.3m
Mercury-Uranus23.615y,
3.9m
2.9m114.4°16.76.926.547.253.114y,
10.5m
45y,
6.3m
Mercury-Neptune24.229y,
8.2m
2.9m115.1°16.97.327.248.454.429y,
4.5m
88y,
8.8m
Mercury-Pluto20.444y,
5.3m
2.9m115.4°17.03.424.240.848.443y,
11.6m
132y,
10.1m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Venus-Mercury9.52.5m4.7m-129.2°4.55.019.919.039.71.5m6.5m
Venus-Terra6.94.8m1y,
7.2m
36.0°3.43.521.713.843.411.5m1y,
9.1m
Venus-Mars7.97.1m11.0m66.0°4.53.418.515.837.11.3m1y,
3.6m
Venus-Vesta11.811.5m8.9m85.0°6.05.919.323.738.65.8m2y,
4.8m
Venus-Juno12.61y,
1.2m
8.6m88.8°6.36.220.025.239.91.4m2y,
3.9m
Venus-Eugenia12.71y,
1.6m
8.6m89.4°6.46.320.025.440.10.7m2y,
3.8m
Venus-Ceres12.51y,
1.8m
8.5m89.8°6.46.120.125.040.20.0m2y,
3.7m
Venus-Pallas12.61y,
1.9m
8.5m89.9°6.46.120.125.240.20.0m2y,
3.8m
Venus-Jupiter26.02y,
6.6m
7.8m102.6°8.118.033.452.166.71y,
8.1m
6y,
9.3m
Venus-Saturn20.25y,
10.2m
7.5m109.0°9.111.127.540.355.04y,
7.2m
16y,
3.5m
Venus-Uranus16.615y,
8.7m
7.4m112.7°9.86.823.933.247.814y,
6.2m
45y,
11.5m
Venus-Neptune17.330y,
2.1m
7.4m114.0°10.07.324.634.649.229y,
3.3m
89y,
7.5m
Venus-Pluto13.345y,
0.0m
7.4m114.6°10.13.221.526.743.044y,
2.1m
134y,
2.2m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Terra-Mercury13.13.5m3.8m-251.7°5.67.523.526.247.00.5m7.4m
Terra-Venus6.94.8m1y,
7.2m
-54.0°3.53.421.713.843.41y,
0.5m
1y,
10.1m
Terra-Mars5.78.5m2y,
1.6m
44.3°3.62.116.511.533.111.8m2y,
4.8m
Terra-Vesta8.81y,
1.1m
1y,
4.6m
71.9°4.54.216.417.532.76.3m2y,
8.4m
Terra-Juno9.51y,
2.9m
1y,
3.6m
77.4°4.84.717.019.134.110.9m3y,
4.7m
Terra-Eugenia9.71y,
3.2m
1y,
3.4m
78.2°4.94.817.119.334.211.7m3y,
6.1m
Terra-Ceres9.51y,
3.5m
1y,
3.3m
78.9°4.94.617.219.034.31y,
0.3m
3y,
7.3m
Terra-Pallas9.61y,
3.5m
1y,
3.3m
79.0°4.94.617.219.134.41y,
0.4m
3y,
7.5m
Terra-Jupiter24.22y,
8.8m
1y,
1.1m
97.2°6.317.931.648.463.39.6m6y,
3.2m
Terra-Saturn18.36y,
1.0m
1y,
0.4m
106.1°7.311.025.736.551.44y,
7.5m
16y,
9.5m
Terra-Uranus14.716y,
0.6m
1y,
0.1m
111.3°8.06.722.229.544.314y,
7.0m
46y,
8.2m
Terra-Neptune15.530y,
7.0m
1y,
0.1m
113.2°8.27.222.931.045.828y,
7.8m
89y,
9.8m
Terra-Pluto11.445y,
5.6m
1y,
0.0m
113.9°8.43.119.722.839.344y,
5.2m
135y,
4.5m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Mars-Mercury16.95.6m3.3m202.2°6.610.323.133.846.33.1m1y,
2.3m
Mars-Venus7.97.1m11.0m-168.4°3.44.518.515.837.11.8m1y,
4.1m
Mars-Terra5.78.5m2y,
1.6m
-75.1°2.13.616.511.533.11y,
2.0m
2y,
7.0m
Mars-Vesta4.01y,
4.2m
3y,
10.8m
45.7°2.02.07.58.115.11y,
8.3m
4y,
4.8m
Mars-Juno5.01y,
6.2m
3y,
3.7m
54.7°2.32.68.39.916.69.3m3y,
9.7m
Mars-Eugenia5.11y,
6.5m
3y,
2.8m
56.0°2.42.78.410.216.97.8m3y,
8.9m
Mars-Ceres5.01y,
6.8m
3y,
2.2m
57.1°2.42.58.59.917.16.5m3y,
8.2m
Mars-Pallas5.01y,
6.9m
3y,
2.1m
57.2°2.42.68.610.117.16.4m3y,
8.1m
Mars-Jupiter22.03y,
1.0m
2y,
2.8m
86.5°4.217.825.343.950.51y,
0.8m
7y,
2.9m
Mars-Saturn16.46y,
6.5m
2y,
0.1m
100.6°5.510.919.732.839.44y,
5.9m
17y,
6.9m
Mars-Uranus13.216y,
8.1m
1y,
11.1m
108.6°6.56.716.526.433.013y,
6.5m
46y,
10.8m
Mars-Neptune14.131y,
4.3m
1y,
10.8m
111.5°6.97.217.428.234.827y,
10.6m
90y,
7.2m
Mars-Pluto9.946y,
4.3m
1y,
10.7m
112.6°7.12.814.019.828.042y,
10.2m
135y,
6.7m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Vesta-Mercury21.49.7m3.1m55.6°8.912.524.542.749.07.4m2y,
2.8m
Vesta-Venus11.811.5m8.9m339.4°5.96.019.323.738.64.7m2y,
3.7m
Vesta-Terra8.81y,
1.1m
1y,
4.6m
-212.3°4.24.516.417.532.70.2m2y,
2.3m
Vesta-Mars4.01y,
4.2m
3y,
10.8m
-79.2°2.02.07.58.115.12y,
0.6m
4y,
9.1m
Vesta-Juno0.91y,
11.9m
21y,
8.9m
15.3°0.40.51.21.92.318y,
8.1m
22y,
7.9m
Vesta-Eugenia1.12y,
0.3m
18y,
11.9m
17.5°0.50.61.32.22.615y,
10.3m
19y,
10.9m
Vesta-Ceres1.12y,
0.6m
17y,
2.6m
19.4°0.60.51.52.23.114y,
0.4m
18y,
1.7m
Vesta-Pallas1.22y,
0.7m
17y,
0.2m
19.6°0.60.61.52.33.113y,
10.0m
17y,
11.3m
Vesta-Jupiter20.83y,
8.2m
5y,
2.7m
68.4°3.117.721.041.641.91y,
1.6m
8y,
5.9m
Vesta-Saturn15.77y,
3.6m
4y,
1.6m
91.4°4.910.715.831.431.71y,
1.6m
15y,
8.8m
Vesta-Uranus12.817y,
8.4m
3y,
9.5m
104.3°6.36.613.025.625.911y,
6.5m
46y,
11.3m
Vesta-Neptune13.932y,
7.4m
3y,
8.5m
108.7°6.87.114.127.828.126y,
11.9m
92y,
2.7m
Vesta-Pluto9.647y,
9.4m
3y,
8.2m
110.6°7.02.510.519.121.142y,
10.4m
138y,
5.2m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Juno-Mercury22.011.3m3.1m209.1°9.013.025.044.050.09.1m2y,
7.8m
Juno-Venus12.61y,
1.2m
8.6m254.0°6.26.320.025.239.96.8m2y,
9.3m
Juno-Terra9.51y,
2.9m
1y,
3.6m
-267.0°4.74.817.019.134.12.7m2y,
8.5m
Juno-Mars5.01y,
6.2m
3y,
3.7m
-110.4°2.62.38.39.916.61y,
3.5m
4y,
3.9m
Juno-Vesta0.91y,
11.9m
21y,
8.9m
-17.8°0.50.41.21.92.318y,
9.9m
22y,
9.7m
Juno-Eugenia0.12y,
2.5m
149y,
11.9m
2.6°0.10.10.20.30.5146y,
8.0m
151y,
1.0m
Juno-Ceres0.32y,
2.9m
82y,
8.0m
4.8°0.10.20.60.61.379y,
3.4m
83y,
9.2m
Juno-Pallas0.32y,
2.9m
78y,
3.9m
5.0°0.10.10.60.51.274y,
11.2m
79y,
5.0m
Juno-Jupiter20.33y,
10.9m
6y,
10.6m
61.6°2.717.720.440.640.73.0m8y,
0.8m
Juno-Saturn15.27y,
7.0m
5y,
1.3m
88.0°4.510.715.330.430.51y,
5.0m
16y,
6.9m
Juno-Uranus12.418y,
0.9m
4y,
7.1m
102.6°5.96.512.424.724.811y,
10.4m
48y,
0.3m
Juno-Neptune13.533y,
0.9m
4y,
5.7m
107.7°6.47.113.627.027.124y,
6.4m
90y,
8.3m
Juno-Pluto9.148y,
3.7m
4y,
5.2m
109.8°6.62.510.018.219.942y,
0.5m
138y,
8.0m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Eugenia-Mercury22.111.6m3.1m172.2°9.013.125.144.250.19.4m2y,
8.7m
Eugenia-Venus12.71y,
1.6m
8.6m238.8°6.36.420.025.440.17.1m2y,
10.2m
Eugenia-Terra9.71y,
3.2m
1y,
3.4m
-276.8°4.84.917.119.334.23.1m2y,
9.6m
Eugenia-Mars5.11y,
6.5m
3y,
2.8m
-115.9°2.72.48.410.216.91y,
2.2m
4y,
3.3m
Eugenia-Vesta1.12y,
0.3m
18y,
11.9m
-20.9°0.60.51.32.22.616y,
0.5m
20y,
1.1m
Eugenia-Juno0.12y,
2.5m
149y,
11.9m
-2.7°0.10.10.20.30.5146y,
8.3m
151y,
1.4m
Eugenia-Ceres0.22y,
3.3m
184y,
2.2m
2.2°0.10.10.50.41.0180y,
9.2m
185y,
3.7m
Eugenia-Pallas0.22y,
3.3m
163y,
10.9m
2.5°0.10.10.40.30.9160y,
5.8m
165y,
0.4m
Eugenia-Jupiter20.33y,
11.3m
7y,
2.6m
60.4°2.617.720.340.540.56.5m8y,
5.1m
Eugenia-Saturn15.17y,
7.5m
5y,
3.5m
87.4°4.410.715.230.330.31y,
10.7m
17y,
1.8m
Eugenia-Uranus12.318y,
1.7m
4y,
8.9m
102.4°5.86.512.324.624.711y,
2.8m
47y,
6.3m
Eugenia-Neptune13.533y,
1.9m
4y,
7.4m
107.5°6.47.113.526.926.928y,
0.4m
94y,
4.2m
Eugenia-Pluto9.048y,
4.8m
4y,
6.8m
109.7°6.62.49.918.119.740y,
6.8m
137y,
4.4m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Ceres-Mercury21.911.9m3.0m140.6°8.713.125.143.750.19.7m2y,
9.4m
Ceres-Venus12.51y,
1.8m
8.5m225.7°6.16.420.125.040.27.4m2y,
11.1m
Ceres-Terra9.51y,
3.5m
1y,
3.3m
-285.1°4.64.917.219.034.33.5m2y,
10.5m
Ceres-Mars5.01y,
6.8m
3y,
2.2m
-120.6°2.52.48.59.917.11y,
1.3m
4y,
3.0m
Ceres-Vesta1.12y,
0.6m
17y,
2.6m
-23.6°0.50.61.52.23.114y,
2.8m
18y,
4.1m
Ceres-Juno0.32y,
2.9m
82y,
8.0m
-5.0°0.20.10.60.61.379y,
4.0m
83y,
9.8m
Ceres-Eugenia0.22y,
3.3m
184y,
2.2m
-2.2°0.10.10.50.41.0180y,
9.4m
185y,
4.0m
Ceres-Pallas0.22y,
3.6m
1488y,
10.0m
0.3°0.10.10.80.51.51485y,
4.5m
1489y,
11.8m
Ceres-Jupiter19.93y,
11.7m
7y,
6.1m
59.4°2.317.720.239.940.39.5m8y,
9.0m
Ceres-Saturn14.87y,
8.0m
5y,
5.3m
86.9°4.110.715.029.630.12y,
3.7m
17y,
7.8m
Ceres-Uranus12.018y,
2.4m
4y,
10.4m
102.1°5.56.512.224.024.410y,
8.3m
47y,
1.1m
Ceres-Neptune13.133y,
2.7m
4y,
8.8m
107.4°6.07.113.426.226.727y,
2.2m
93y,
7.7m
Ceres-Pluto8.748y,
5.8m
4y,
8.2m
109.6°6.32.49.817.419.539y,
3.5m
136y,
3.0m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Pallas-Mercury21.911.9m3.0m136.6°8.813.125.143.950.29.7m2y,
9.5m
Pallas-Venus12.61y,
1.9m
8.5m224.1°6.16.420.125.240.27.5m2y,
11.2m
Pallas-Terra9.61y,
3.5m
1y,
3.3m
-286.2°4.64.917.219.134.43.6m2y,
10.7m
Pallas-Mars5.01y,
6.9m
3y,
2.1m
-121.2°2.62.48.610.117.11y,
1.2m
4y,
2.9m
Pallas-Vesta1.22y,
0.7m
17y,
0.2m
-23.9°0.60.61.52.33.114y,
0.4m
18y,
1.8m
Pallas-Juno0.32y,
2.9m
78y,
3.9m
-5.3°0.10.10.60.51.274y,
11.8m
79y,
5.6m
Pallas-Eugenia0.22y,
3.3m
163y,
10.9m
-2.5°0.10.10.40.30.9160y,
6.1m
165y,
0.7m
Pallas-Ceres0.22y,
3.6m
1488y,
10.0m
-0.3°0.10.10.80.51.51485y,
4.6m
1489y,
11.8m
Pallas-Jupiter20.03y,
11.8m
7y,
6.6m
59.3°2.317.720.240.040.49.9m8y,
9.5m
Pallas-Saturn14.97y,
8.1m
5y,
5.6m
86.8°4.210.715.129.730.12y,
4.3m
17y,
8.5m
Pallas-Uranus12.018y,
2.5m
4y,
10.6m
102.1°5.56.512.224.124.510y,
7.4m
47y,
0.4m
Pallas-Neptune13.233y,
2.8m
4y,
9.0m
107.4°6.17.113.426.426.727y,
0.9m
93y,
6.6m
Pallas-Pluto8.848y,
5.9m
4y,
8.4m
109.5°6.32.49.817.519.539y,
1.5m
136y,
1.3m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Jupiter-Mercury33.22y,
4.0m
2.9m286.3°18.215.036.166.372.22y,
2.0m
6y,
10.1m
Jupiter-Venus26.02y,
6.6m
7.8m127.0°18.08.133.452.166.72y,
1.0m
7y,
2.3m
Jupiter-Terra24.22y,
8.8m
1y,
1.1m
276.5°17.96.331.648.463.31y,
11.2m
7y,
4.8m
Jupiter-Mars22.03y,
1.0m
2y,
2.8m
309.4°17.84.225.343.950.51y,
4.6m
7y,
6.7m
Jupiter-Vesta20.83y,
8.2m
5y,
2.7m
-184.9°17.73.121.041.641.96.7m7y,
11.0m
Jupiter-Juno20.33y,
10.9m
6y,
10.6m
-142.6°17.72.720.440.640.71y,
9.6m
9y,
7.3m
Jupiter-Eugenia20.33y,
11.3m
7y,
2.6m
-136.4°17.72.620.340.540.52y,
0.7m
9y,
11.4m
Jupiter-Ceres19.93y,
11.7m
7y,
6.1m
-131.3°17.72.320.239.940.32y,
3.5m
10y,
3.0m
Jupiter-Pallas20.03y,
11.8m
7y,
6.6m
-130.7°17.72.320.240.040.42y,
3.9m
10y,
3.4m
Jupiter-Saturn28.210y,
0.6m
19y,
9.6m
58.0°17.610.628.256.556.52y,
10.6m
22y,
11.8m
Jupiter-Uranus24.121y,
3.8m
13y,
9.9m
88.8°17.76.424.148.248.22y,
3.0m
44y,
10.6m
Jupiter-Neptune24.836y,
12.0m
12y,
9.5m
99.1°17.77.024.849.549.519y,
3.5m
93y,
3.5m
Jupiter-Pluto19.752y,
8.9m
12y,
5.6m
103.4°17.81.920.539.341.039y,
6.6m
145y,
0.4m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Saturn-Mercury27.25y,
6.8m
2.9m142.3°11.216.030.254.560.45y,
4.8m
16y,
6.3m
Saturn-Venus20.25y,
10.2m
7.5m357.5°11.19.127.540.355.05y,
4.9m
17y,
1.3m
Saturn-Terra18.36y,
1.0m
1y,
0.4m
149.2°11.07.325.736.551.45y,
4.3m
17y,
6.3m
Saturn-Mars16.46y,
6.5m
2y,
0.1m
7.5°10.95.519.732.839.45y,
1.2m
18y,
2.2m
Saturn-Vesta15.77y,
3.6m
4y,
1.6m
176.3°10.74.915.831.431.74y,
2.5m
18y,
9.7m
Saturn-Juno15.27y,
7.0m
5y,
1.3m
273.8°10.74.515.330.430.53y,
8.6m
18y,
10.6m
Saturn-Eugenia15.17y,
7.5m
5y,
3.5m
288.1°10.74.415.230.330.33y,
7.5m
18y,
10.6m
Saturn-Ceres14.87y,
8.0m
5y,
5.3m
299.7°10.74.115.029.630.13y,
6.5m
18y,
10.6m
Saturn-Pallas14.97y,
8.1m
5y,
5.6m
301.1°10.74.215.129.730.13y,
6.4m
18y,
10.6m
Saturn-Jupiter28.210y,
0.6m
19y,
9.6m
-124.8°10.617.628.256.556.56y,
6.7m
26y,
7.9m
Saturn-Uranus16.927y,
3.6m
45y,
9.8m
63.2°10.66.316.933.833.88.9m55y,
4.0m
Saturn-Neptune17.644y,
1.2m
36y,
2.1m
83.6°10.66.917.635.135.143y,
7.5m
131y,
9.9m
Saturn-Pluto12.060y,
8.2m
33y,
8.4m
91.8°10.71.312.823.925.611y,
8.2m
133y,
0.7m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Uranus-Mercury23.615y,
3.9m
2.9m312.3°6.916.726.547.253.115y,
1.9m
45y,
9.7m
Uranus-Venus16.615y,
8.7m
7.4m339.8°6.89.823.933.247.815y,
3.6m
46y,
8.9m
Uranus-Terra14.716y,
0.6m
1y,
0.1m
161.9°6.78.022.229.544.315y,
4.2m
47y,
5.4m
Uranus-Mars13.216y,
8.1m
1y,
11.1m
227.2°6.76.516.526.433.015y,
4.0m
48y,
8.3m
Uranus-Vesta12.817y,
8.4m
3y,
9.5m
224.6°6.66.313.025.625.915y,
0.1m
50y,
4.9m
Uranus-Juno12.418y,
0.9m
4y,
7.1m
126.5°6.55.912.424.724.814y,
9.5m
50y,
11.4m
Uranus-Eugenia12.318y,
1.7m
4y,
8.9m
164.6°6.55.812.324.624.714y,
9.0m
51y,
0.5m
Uranus-Ceres12.018y,
2.4m
4y,
10.4m
195.7°6.55.512.224.024.414y,
8.6m
51y,
1.4m
Uranus-Pallas12.018y,
2.5m
4y,
10.6m
199.5°6.55.512.224.124.514y,
8.5m
51y,
1.5m
Uranus-Jupiter24.121y,
3.8m
13y,
9.9m
253.7°6.417.724.148.248.210y,
10.8m
53y,
6.3m
Uranus-Saturn16.927y,
3.6m
45y,
9.8m
-151.3°6.310.616.933.833.810y,
5.7m
65y,
0.9m
Uranus-Neptune13.261y,
1.1m
171y,
12.0m
46.5°6.36.913.226.326.372y,
0.1m
194y,
2.4m
Uranus-Pluto6.979y,
4.7m
127y,
4.9m
64.6°6.30.67.813.815.58y,
6.1m
167y,
3.5m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Neptune-Mercury24.229y,
8.2m
2.9m95.1°7.316.927.248.454.429y,
6.2m
88y,
10.5m
Neptune-Venus17.330y,
2.1m
7.4m162.6°7.310.024.634.649.229y,
9.0m
90y,
1.2m
Neptune-Terra15.530y,
7.0m
1y,
0.1m
330.7°7.28.222.931.045.829y,
10.7m
91y,
0.7m
Neptune-Mars14.131y,
4.3m
1y,
10.8m
296.9°7.26.917.428.234.830y,
0.5m
92y,
9.1m
Neptune-Vesta13.932y,
7.4m
3y,
8.5m
185.4°7.16.814.127.828.130y,
0.3m
95y,
3.1m
Neptune-Juno13.533y,
0.9m
4y,
5.7m
327.3°7.16.413.627.027.129y,
11.3m
96y,
1.2m
Neptune-Eugenia13.533y,
1.9m
4y,
7.4m
40.2°7.16.413.526.926.929y,
11.1m
96y,
2.9m
Neptune-Ceres13.133y,
2.7m
4y,
8.8m
99.7°7.16.013.426.226.729y,
10.9m
96y,
4.3m
Neptune-Pallas13.233y,
2.8m
4y,
9.0m
107.0°7.16.113.426.426.729y,
10.9m
96y,
4.5m
Neptune-Jupiter24.836y,
12.0m
12y,
9.5m
138.1°7.017.724.849.549.527y,
8.7m
101y,
8.7m
Neptune-Saturn17.644y,
1.2m
36y,
2.1m
-355.2°6.910.617.635.135.116y,
3.9m
104y,
6.3m
Neptune-Uranus13.261y,
1.1m
171y,
12.0m
-81.4°6.96.313.226.326.388y,
8.5m
210y,
10.8m
Neptune-Pluto7.3102y,
4.9m
491y,
5.0m
31.2°6.90.48.114.516.2329y,
2.1m
533y,
11.9m
MISSIONOrbit
ΔV
(km/s)
Orbit
T
SYNANGInsert
ΔV
(km/s)
Arrive
ΔV
(km/s)
Surf
ΔV
(km/s)
Rnd
Orbit
ΔV
(km/s)
Rnd
Surf
ΔV
(km/s)
Wait
T
Rnd
T
Pluto-Mercury20.444y,
5.3m
2.9m352.9°3.417.024.240.848.444y,
3.3m
133y,
1.9m
Pluto-Venus13.345y,
0.0m
7.4m124.0°3.210.121.526.743.044y,
7.0m
134y,
7.1m
Pluto-Terra11.445y,
5.6m
1y,
0.0m
10.9°3.18.419.722.839.344y,
9.4m
135y,
8.7m
Pluto-Mars9.946y,
4.3m
1y,
10.7m
305.8°2.87.114.019.828.045y,
0.6m
137y,
9.2m
Pluto-Vesta9.647y,
9.4m
3y,
8.2m
120.9°2.57.010.519.121.145y,
2.8m
140y,
9.7m
Pluto-Juno9.148y,
3.7m
4y,
5.2m
148.8°2.56.610.018.219.945y,
2.7m
141y,
10.2m
Pluto-Eugenia9.048y,
4.8m
4y,
6.8m
257.5°2.46.69.918.119.745y,
2.7m
142y,
0.3m
Pluto-Ceres8.748y,
5.8m
4y,
8.2m
346.0°2.46.39.817.419.545y,
2.6m
142y,
2.2m
Pluto-Pallas8.848y,
5.9m
4y,
8.4m
356.9°2.46.39.817.519.545y,
2.6m
142y,
2.4m
Pluto-Jupiter19.752y,
8.9m
12y,
5.6m
20.8°1.917.820.539.341.043y,
10.2m
149y,
4.0m
Pluto-Saturn12.060y,
8.2m
33y,
8.4m
163.5°1.310.712.823.925.635y,
7.0m
156y,
11.4m
Pluto-Uranus6.979y,
4.7m
127y,
4.9m
-159.7°0.66.37.813.815.525y,
1.7m
183y,
11.1m
Pluto-Neptune7.3102y,
4.9m
491y,
5.0m
-43.8°0.46.98.114.516.2346y,
5.3m
551y,
3.1m

Moons of Mars

PhobosDeimos
Phobos3745
10h
Deimos744
9h
1

Moons of Jupiter

MetisAdrasteaAmaltheaIoEuropaGanymedeCallistoHimaliaElara
Metis7109
31d, 21h
4,970
17h
13,485
9h
15,561
8h
17,006
7h
17,380
7h
15,589
7h
15,574
7h
Adrastea85
4h
84,877
18h
13,410
9h
15,495
8h
16,949
7h
17,330
7h
15,549
7h
15,534
7h
Amalthea4,922
5h
4,826
5h
549,392
17h
11,876
14h
13,814
13h
14,596
12h
13,367
12h
13,355
12h
Io11,768
11h
11,690
11h
7,625
13h
1,7615,689
3d, 13h
8,022
2d, 8h
9,431
1d, 23h
9,560
1d, 19h
9,558
1d, 19h
Europa14,182
20h
14,113
20h
10,452
22h
2,545
1d, 7h
1,3885,504
7d, 1h
6,855
4d, 12h
7,705
3d, 14h
7,709
3d, 14h
Ganymede15,107
1d, 12h
15,047
1d, 12h
11,871
1d, 14h
4,385
2d, 2h
2,177
2d, 15h
1,9025,772
12d, 12h
6,626
7d, 9h
6,636
7d, 9h
Callisto15,676
3d, 6h
15,624
3d, 6h
12,850
3d, 9h
6,004
3d, 24h
3,748
4d, 16h
2,127
5d, 19h
1,6915,065
17d, 21h
5,083
17d, 20h
Himalia15,542
45d, 2h
15,499
45d, 2h
13,279
45d, 9h
7,806
46d, 19h
6,281
48d, 6h
4,676
50d, 16h
3,305
55d, 16h
59158
7050d, 0h
Elara15,558
46d, 17h
15,515
46d, 17h
13,297
47d, 1h
7,834
48d, 11h
6,316
49d, 23h
4,717
52d, 9h
3,355
57d, 11h
41
127d, 16h
20

Moons of Saturn

EpimetheusJanusMimasEnceladusTethysDioneRheaTitanIapetus
Epimetheus1572
1405d, 13h
1,521
2d, 16h
3,156
1d, 10h
4,374
1d, 2h
5,552
22h
6,768
20h
9,230
17h
8,481
17h
Janus17
8h
261,515
2d, 16h
3,149
1d, 10h
4,368
1d, 2h
5,546
22h
6,762
20h
9,224
17h
8,475
17h
Mimas1,428
10h
1,416
10h
921,676
3d, 1h
2,943
1d, 21h
4,188
1d, 11h
5,514
1d, 5h
8,302
1d, 0h
7,703
23h
Enceladus3,044
12h
3,031
12h
1,490
14h
1121,384
5d, 0h
2,653
2d, 18h
4,077
1d, 23h
7,249
1d, 12h
6,827
1d, 9h
Tethys4,121
15h
4,108
15h
2,617
17h
1,023
19h
2581,568
6d, 2h
2,969
3d, 6h
6,422
2d, 3h
6,132
1d, 22h
Dione5,216
19h
5,203
19h
3,780
21h
2,217
1d
971
1d, 4h
3331,891
6d, 23h
5,559
3d, 7h
5,391
2d, 20h
Rhea6,340
1d, 4h
6,328
1d, 4h
5,016
1d, 6h
3,553
1d, 10h
2,297
1d, 13h
1,116
1d, 19h
4224,565
6d, 7h
4,469
4d, 19h
Titan7,367
3d, 9h
7,355
3d, 9h
6,369
3d, 12h
5,292
3d, 16h
4,321
3d, 22h
3,371
4d, 5h
2,276
4d, 20h
1,8323,977
19d, 23h
Iapetus8,104
14d, 22h
8,093
14d, 22h
7,258
15d, 3h
6,359
15d, 11h
5,523
15d, 19h
4,698
16d, 8h
3,681
17d, 6h
1,736
21d, 20h
360

Moons of Uranus

MirandaArielUmbrielTitaniaOberon
Miranda1151,215
4d, 4h
1,889
2d, 13h
2,834
1d, 22h
3,137
1d, 19h
Ariel720
1d
3641,332
6d, 11h
2,218
3d, 14h
2,533
3d, 3h
Umbriel1,431
1d, 9h
593
1d, 16h
3381,629
7d, 23h
1,918
6d
Titania2,194
2d, 8h
1,312
2d, 16h
730
3d, 3h
5141,566
24d, 13h
Oberon2,530
3d, 7h
1,663
3d, 15h
1,060
4d, 4h
496
5d, 12h
483

A Grain Of Salt

INFLATED DELTA Vs

"What's delta V from Earth orbit to Mars orbit?" -- a common question in science fiction or space exploration forums. The usual answer given is around 6 km/s, the delta V needed to go from a low, circular Earth orbit to a low, circular Mars orbit. A misleading answer, in my opinion.

There are a multitude of possible orbits and low circular orbits take more delta V to enter and exit. A science fiction writer using 6 km/s for Earth orbit to Mars orbit has a needlessly high delta V budget.

There are capture orbits that take much less delta V to enter and exit. By capture orbit I mean a periapsis as low as possible and apoapsis as high as possible. A capture orbit's apoapsis should be within a planet's Sphere Of Influence (SOI).

On page 124 of Prussing and Conway's Orbital Mechanics, radius of Sphere Of Influence is given by:

rsoi = ( mp / ms ) 2/5 rsp

where

rsoi is radius of Sphere Of Influence
mp is mass of planet
ms is mass of sun
rsp is distance between sun and planet.

The table below is modeled after a mission table at Atomic Rockets, a popular resource for science fiction writers and space enthusiasts.

• Departure and destination planets are along the left side and across the top of the table.
• Numbers are kilometers/second
• Numbers below the diagonal in blue are delta V's needed to go from departure planet's low circular orbit to destination planet's low circular orbit. These are about the same as the blue quantities listed at Atomic rockets.
• Numbers above the diagonal in red are delta V's needed to go from departure planet's capture orbit to desitnation planet's capture orbit.


VenusEarthMarsJupiterSaturnUranusNeptune
Venus
0.73.65.66.77.57.5
Earth6.8
1.13.54.65.35.4
Mars7.95.7
3.04.55.65.8
Jupiter25.824.021.8
0.10.30.3
Saturn20.018.116.227.8
0.10.2
Uranus16.614.713.223.816.6
0.03
Neptune17.315.414.124.517.313.1

It's easy to see the red numbers are a lot less than the blue numbers. I used this spreadsheet to get these numbers. The spreadsheet assumes circular, coplanar orbits.

A  graphic comparing delta Vs from earth to various destination planets:


If a low circular orbit at the destination is needed, it's common to do a burn to capture orbit with the capture orbit's periapsis passing through the upper atmosphere. Each periapsis pass through the upper atmosphere sheds velocity, lowering the apoapsis. Thus over time the orbit is circularized without the need for reaction mass. The planets in the table above have atmospheres, so the drag pass technique can be used for all of them.

A delta V budget is from propellant source to destination. If propellant depots are in high orbit, the needed delta V is closer to departing from a capture orbit than departing from a low circular orbit.

Thus it would save a lot of delta V to depart from Earth-Moon-Lagrange 1 or 2 (EML1 or EML2) regions. The poles of Luna have cold traps that may have rich volatile deposits. This potential propellant is only 2.5 km/s from EML1 and EML2. Entities like Planetary Resources have talked about parking a water rich asteroid at EML1 or 2. Whether EML propellant depots are supplied by lunar or asteroidal volatiles, they would greatly reduce the delta V for interplanetary trips.

Mars' two moons, Phobos and Deimos, have low densities. Whether that is from volatile ices or voids in a rubble pile is still unknown. If they do have volatile ices, these moons could be a propellant source. It would take much less delta V departing from Deimos than low Mars orbit.

All the gas giants have icey bodies high on the slopes of their gravity wells. However the axis of Uranus and her moons are tilted 97 degrees from the ecliptic. The plane change would be very expensive in terms of delta V. So the moons of Uranus wouldn't be helpful as propellant sources.

Venus has no moon. So of all the planets listed above, only Uranus and Venus lack potential high orbit propellant sources.

Anyway you look at it, the blue numbers from conventional wisdom are inflated.

From INFLATED DELTA Vs by Hollister David (2012)

Delta-V Maps

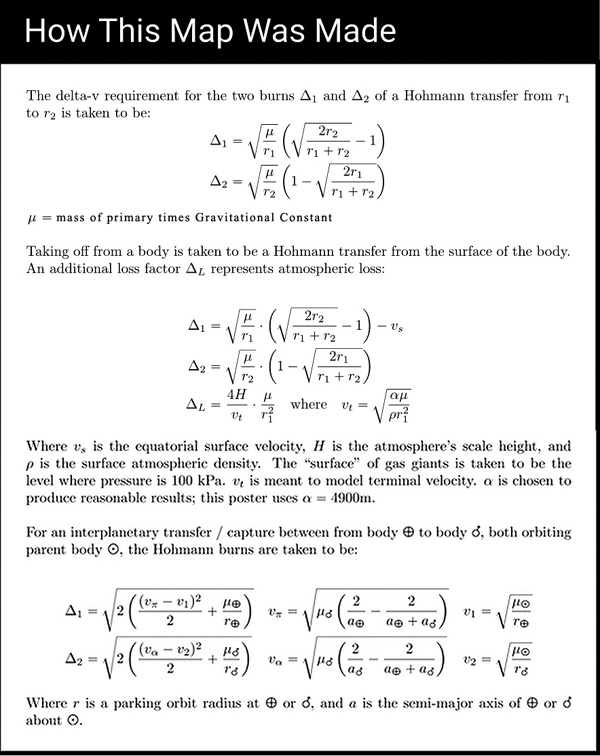

These are "maps" of the delta-V cost to move from one "location" to another (instead of maps of the distance from one location to another). A spacecraft with propellant in the tanks has a delta-V reserve (NASA calls it the delta-V "budget"). Spacecraft "spend" delta-V from their budget to "pay" for the cost of moving from one location to another (what they actually do is burn their rocket engine to expend propellant and thus perform a maneuver). The unit of currency in the delta-V budget is the meter per second of velocity change (abbreviated as "m/s"). If you'd rather use larger denominations then 1,000 m/s of delta-V is equal to 1 kilometer per second of delta-V ("km/s").

Keep in mind that some of the locations are actually orbits. And keep in mind that the "locations" are just useful waypoints spacecraft use to get from one interesting planet/moon/whatever to another. Meaning that there are actually infinitely many "locations", but most of them do not lead to anywhere except a one-way trip into the inky depths of space. We didn't bother to put such worthless locations on the map because what's the point?

If there is a planet with an atmosphere involved and your spacecraft has an aeroshell, then "aerobraking" may be used (i.e., diving through the planet's atmosphere to use friction to burn off delta-V for free in lieu of expending expensive propellant). There is a limit to how much delta-V can be gotten rid of by aerobraking. The general rule is that aerobraking can kill a velocity approximately equal to the escape velocity of the planet where the aerobraking is performed (10 km/s for Venus, 11 km/s for Terra, 5 km/s for Mars, 60 km/s for Jupiter, etc.).

Finally, all these maps show the minimum delta-V cost for travel. This is because for most near-future spacecraft their delta-V budgets are quite tiny. In other words the spacecraft are poor and can only afford to purchase shoddy items from the dollar store. In this case, "shoddy items" means Hohmann Transfer orbits. They are shoddy because they take a long time to travel (e.g., about nine months to travel from Terra to Mars) and because you can only use it when the launch window opens (e.g., every 26 months for Terra to Mars). Transit time and launch windows to a few major destinations can be found here.

The flip side is if you have a far-future spacecraft with an outrageously huge delta-V budget (a "torchship"), you do not need any of these maps. You just point your ship at the destination and ignite the engines. To find the delta-V cost and transit time refer to the Mission Tables under the columns labeled "Brachistochrone".


  • LEO: Low Earth Orbit. Earth orbit from 160 kilometers to 2,000 kilometers from the Earth's surface (below 200 kilometers Earth's atmosphere will cause the orbit to decay). The International Space Station is in an orbit that varies from 320 km to 400 km.
  • GEO: Geosynchronous Earth Orbit. Earth orbit at 42,164 km from the Earth's center (35,786 kilometres from Earth's surface). Where the orbital period is one sidereal day. A satellite in GEO where the orbit is over the Earth's equator is in geostationary orbit. Such a satellite as viewed from Earth is in a fixed location in the sky, which is intensely desirable real-estate for telecommunications satellites. These are called "Clarke orbits" after Sir. Arthur C. Clarke. Competition is fierce for slots in geostationary orbit, slots are allocation by the International Telecommunication Union.
  • EML1: Earth-Moon Lagrangian point 1. On the line connecting the centers of the Earth and the Moon, the L1 point is where the gravity of the two bodies cancels out. It allows easy access to both Earth and Lunar orbits, and would be a good place for an orbital propellant depot and/or space station. It has many other uses. It is about 344,000 km from Earth's center.
Evolvable Lunar Architecture

ed note:

Space system performance, deltaV, was defined for each leg of the space transfer as shown in Figure T-2. For Earth-moon transfer, the deltaV is taken the maximum actually used for the seven Apollo moon missionsviii. However, for the Apollo descent trajectory, there was a flight path angle hold for the pilot to view the landing site for large boulders or small craters (7% penalty); and for the final approach, there were six hover maneuvers for pilot attitude and speed corrections. In addition, there were additional contingencies for engine-valve malfunction, redline low-level propellant sensor, and redesignation to another site (9% penalty). In this study, it was assumed that the landing sites are fully defined, advanced laser sensors for remote site debris and crater checkout, and modern propellant and engine sensors for measuring and establishing final engine performance. In addition, the final descent time was reduced from the 45 seconds baselined in Apollo to 30 seconds at a decent velocity of 0.1 m/s. For polar lunar missions, the cis-lunar performance was taken from NASA’s Exploration Systems Architecture Study that provided the baseline systems for NASA’s Constellation programix.

The performances of transfers from Earth to Earth-moon L2 and from there to Mars orbit were taken from various referencesx, xi, xii, xiii. The selected data are for direct missions only. Performance can be optimized for specific dates of transfer using gravity turns but cannot be used in this study because specific missions and dates are not available.

Simple orbital mechanics defined the 1-body orbit around Earth to a periapsis of Earth-moon L2 to compute the periapsis deltaV and the atmospheric entry speed of 11km/s.

Finally for all deltaVs in Figure T-2, an additional 5 percent reserve is used.


viii Richard W. Orloff. “Apollo By The Numbers”. NASA SP-2000-4029, 2000.
ix Exploration Systems Architecture Study Final Report. NASA-TM-2005-214062, 2005. www.sti.nasa.gov xi E. Canalis, et.al. “Assessment of Mission Design Including Utilization of Libration Points and Weak Stability Boundaries”. Approved by Dario, Advanced Concetps Team, Contract Number 18142/04/NL/MV
xii John P. Carrico, et.al. “Trajectory Sensitivities for Sun-Mars Libration Point Missions”, AAS 01-327, 2001
xiii D. F. Laudau, et.al. “Earth Departure Options for Human Missions to Mars”, Concepts and Approaches for Mars Exploration, held June 12-14, 2012 in Houston, Texas. LPI Contribution No. 1679, id.4233, June 2012

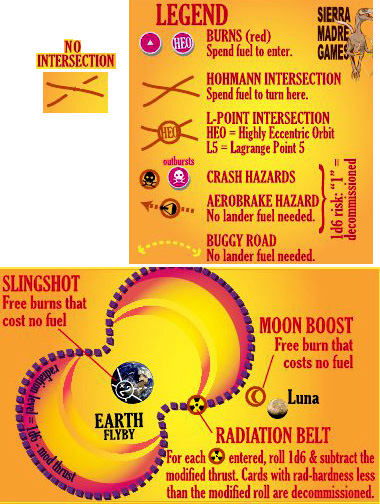

Rocket Flight Delta-V Map

In the also regrettably out of print game Rocket Flight the map is ruled off in hexagons of delta V instead of hexagons of distance (wargames use hexagons instead of squares so that diagonal movement is the same distance as orthogonal). Moving from one hex to an adjacent hex represents a delta V of 3 kilometers per second. This also means that in this map each hexagon represents an entire orbit (instead of a location), due to "rotating frames of reference" (no, I do not quite understand that either; but people I know who are more mathematically knowledgable than I have assured me that it is a brilliant idea).

In order to move to an adjacent hexagon in one turn, the spacecraft has to expend propellant mass points. To discover how much, refer to the table and cross reference the spacecraft propulsion's specific impulse with the spacecraft's dry mass points:

Specific
Impulse
Dry Mass
0 to 5
Dry Mass
6 to 10
Dry Mass
11 to 20
Dry Mass
21 to 30
Dry Mass
31 to 99
800 km/s00000.1
100 km/s00000.5
32 km/s000.50.51
16 km/s00.5112
8 km/s0.51224
4 km/s11347
3 km/s124610
2 km/s234915
1 km/s48162440

If you want to move two hexes in one turn, you have to burn four times the specified number of propellant points. You can move three hexes for eight times the propellant, four hexes for 16 times the propellant, and 5 hexes for 32 times the propellant. Which is why most people opt to just move one hex per turn unless it is an emergency.

However, the various propulsion systems have a maximum mass flow rate, which is the maximum number of propellant points it can expend in one turn. This corresponds to the spacecraft's acceleration rate.


High Frontier Delta-V Map

The black hexagons are sites, which are planets, moons, and asteroid spacecraft can land on. some planets are composed of several sites, e.g., the planet Mars is composed of three sites: North Pole, Hellas Basin Buried Glaciers, and Arsia Mons Caves.

Sites are connected by lines called routes which are paths that spacecraft can move along. During the turn, a spacecraft can move as far as it wants along a path, until it encounters a pink circle. In order to enter a pink circle it has to expend one "burn" (paying the 2.5 km/sec delta V cost and also expending a unit of propellant). At the beginning of each turn, a spacecraft is given an allotment of "burns" equal to its acceleration rating. These burns can be used during its turn, unused burns are lost. Remember in order to use a burn the spacecraft must pay a point of propellant.

When a spacecraft runs out of burns, it can no longer enter pink circles during this turn. It has to stop on any "Intersections" on its current path prior to the pink circle. And when a spacecraft runs out of propellant, it can no longer make burns at all until it is refueled no matter what turn it is.

The number of propellant units and the acceleration rating of a spacecraft depends upon its propulsion system and mass ratio.

Different routes cross each other. If one of the routes has a gap (so it appears that one route goes "over" and the other goes "under", see "No Intersection" in the diagram) the two routes are not connected. If both routes have no gaps they are connected, this is called a "Hohmann Intersection". If the place the two routes cross is marked with a circle they are connected, this is called a "Lagrange Intersection." At the end of a turn all spacecraft must be occupying either an Intersection or a Site.

A spacecraft can turn at an Interstection to switch from the route it is on to the route it was crossing (otherwise it has to stay on its current route). It costs one burn to turn at a Hohmann intersection, turning at a Lagrange intersection is free (due to gravity being negated by a nearby planet).

Some Lagrange intersections are marked with symbols:

  • Skull and Crossed Bones: a Crash Hazard. Spacecraft has to roll a die to see if it crashes and is destroyed.
  • Parachute: an Aerobrake Hazard. Spacecraft has to roll a die. If it rolls 2 to 6, it successfully areobrakes, and can now move to land on a Site with no cost in propellant. If it rolls a 1, it burns up in reentry and is destroyed. Spacecraft with Atmospheric ISRU Scoops are immune to Aerobrake Hazards, they are automatically successful. In addition such spacecraft can refuel if they ends their move there. A spacecraft using one of the three kinds of lightpressure sail propulsion is automatically destroyed if it enters an Aerobrake Hazard.
  • Number: Gravitational Slingshot. Spacecraft obtains that number of extra burns which do not require propellant to be expended. These burns can be used in the remainder of the game turn. NASA loves gravitational slingshots and use them at every opportunity.
  • Lunar Crescent: Moon Boost. As per Gravitational Slingshot, except it only gives +1 extra propellant-free burn.
  • Nuclear Trefoil: Radiation Belt. Spacecraft entering this suffer a radiation attack. Roll one die and subtract the spacecraft's modified thrust to find the radiation level (the faster you can fly the lower the radiation dose). All spacecraft systems with a radiation hardness lower than the radiation level are destroyed. If sunspots are active add 2 to the die roll. The UN Cycler is immune to the Earth radiation belt. Spacecraft with a sail propulsion system are immune to radiation belts. Spacecraft with Magnetic Sails are immune and in addition get a Moon Boost.

High Trader Delta-V Map

A pity this game never saw the light of day.

Each triangle or diamond shape is an Orbital. Spacecraft in orbitals must always be facing one of the sides of the orbital. Turning to face an adjacent side requires one burn of 2.5 km/s delta V. Spacecraft can move from the orbital they are in, jumping over the face they are pointing at, and enter the next orbital. There is no cost to do so unless the face has a Burn Dot on it. In that case the spacecraft must expend one burn of 2.5 km/s delta V. If the spacecraft does not have that much delta V left it is forbidden to cross the Burn Dot.

Each new orbital entered adds 2 months to the spacecraft's travel time.

Atomic Rockets notices

This week's featured addition is SPIN POLARIZATION FOR FUSION PROPULSION

This week's featured addition is INsTAR

This week's featured addition is NTR ALTERNATIVES TO LIQUID HYDROGEN

Atomic Rockets

Support Atomic Rockets

Support Atomic Rockets on Patreon
